C & Z Purlins

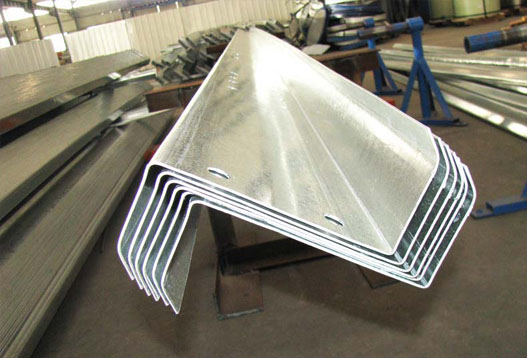

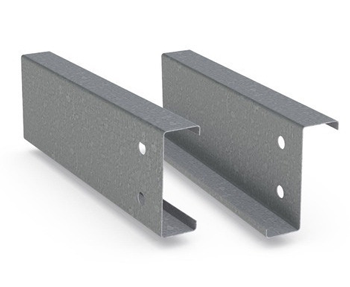

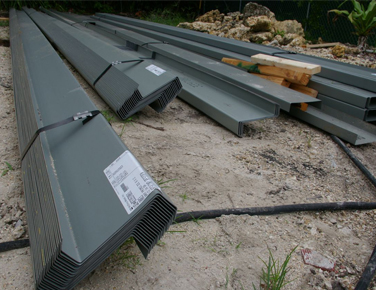

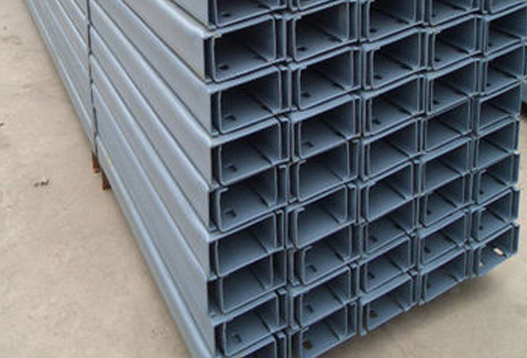

It is the C/Z shape of the purlin which has contributed to the classification of the purlins. C-Sections generally have equal flanges, it can be adapted for use in small and medium sized buildings as a structural framework. Z section has one broad and one narrow flange which allows the two sections to fit together closely making it easy for lapping. We at Smart Roofing Solutions make C and Z purlins of all sizes and thickness to serve your need.

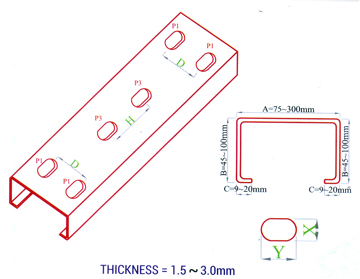

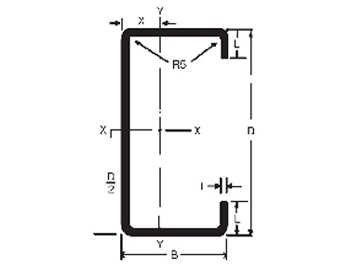

TECHNICAL SPECIFICATIONS C - PURLINS
| A | B | C | D | H | P1 / P2 /P3 |
| 60 mm | 40 mm | 10 mm | |||
| 70 mm | 40 mm | 10 mm | |||
| 75 mm | 45 mm | 10 mm | |||
| 100 mm | 50 mm | 17 mm | 50 mm | 14x22 mm | |
| 125 mm | 50 mm | 17 mm | 50 mm | 50 mm | 16x24 mm |
| 150 mm | 65 mm | 20 mm | 60 mm | 18x24 mm | |
| 200 mm | 75 mm | 20 mm | 110 mm | ||
| 250 mm | 85 mm | 20 mm | 160 mm | ||
| 300 mm | 100 mm | 25 mm | 210 mm |

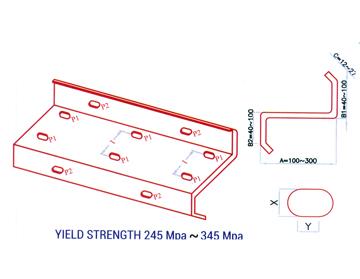

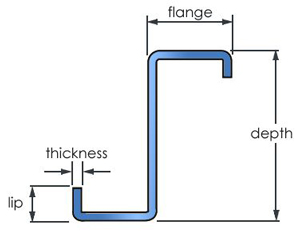

TECHNICAL SPECIFICATIONS Z - PURLINS
| A | B | C | I | P1 / P2 /P3 |
| 100 mm | 50 mm | 17 mm | 50 mm | |
| 125 mm | 50 mm | 17 mm | 50 mm | 14x22 mm |
| 150 mm | 65 mm | 20 mm | 60 mm | 16x24 mm |
| 200 mm | 75 mm | 20 mm | 110 mm | 18x24 mm |
| 250 mm | 85 mm | 20 mm | 160 mm | |
| 300 mm | 100 mm | 25 mm | 210 mm |
